Our 5-Axis CNC Machining Services
Unlock precision, efficiency, and versatility for your complex manufacturing needs with our 5-Axis CNC Machining services. Whether you’re crafting aerospace components, medical devices, or automotive parts, we deliver tight tolerances, reduced setup time, and custom solutions that traditional machining can’t match. Partner with us to turn your most intricate designs into high-quality, production-ready parts—on time and within budget.

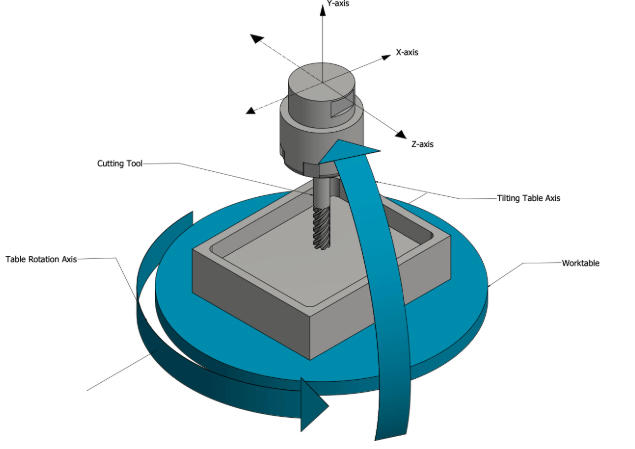

What Is 5-Axis CNC Machining?
At its core, 5-Axis CNC Machining is an advanced manufacturing technology that allows a machine tool to move a workpiece (or cutting tool) along five different axes simultaneously. Unlike Traditional CNC (which typically uses 3 axes: X, Y, Z), this multi-axis capability enables machining of complex geometries in a single setup.
To clarify the basics, let’s break down key terms in the CNC Machining Basics and Machine Tool Axes landscape:
| Term | Definition |
| 5-Axis Machining | Machining process using 5 axes (X, Y, Z + 2 rotational axes: A, B, or C) for simultaneous movement. |
| Multi-Axis Machining | An umbrella term for processes with 4+ axes; 5-axis is the most widely used for complex parts. |
| Traditional CNC | 3-axis machining (X, Y, Z) that requires multiple setups for complex shapes, increasing time and error risk. |
| Machining Technology Overview | 5-axis machining integrates computer programming, tool path optimization, and high-precision hardware to deliver consistent results. |
This technology is a game-changer for industries needing intricate parts—think turbine blades, dental implants, or aerospace brackets—where 5-Axis CNC vs Traditional CNC performance gaps are most visible.
Our 5-Axis CNC Machining Capabilities
We specialize in turning challenging designs into reality with our industry-leading 5-Axis CNC Capabilities. Our services blend precision, customization, and advanced engineering to meet the unique needs of every client.
Here’s a breakdown of our core offerings, aligned with key Precision Machining Services and Advanced Machining Solutions:
| Capability | Description | Ideal For |
| Custom Machining | Tailored processes for one-off prototypes or high-volume production runs. | Medical devices, custom industrial equipment. |
| High-End CNC Machining | Ultra-precise machining for parts requiring tight tolerances (down to ±0.0005”). | Aerospace components, optical parts. |
| Complex Part Manufacturing | Single-setup machining for 3D geometries (e.g., curved surfaces, undercuts). | Automotive powertrain parts, turbine components. |
| Precision Engineering | Collaborative design support to optimize parts for manufacturability. | New product development, prototype refinement. |
| Tailored Machining Services | Flexible workflows to match material type, volume, and quality requirements. | Consumer goods, defense industry parts. |
No matter the project—from small plastic components to large metal structures—we ensure consistency and quality at every step.
The 5-Axis CNC Machining Process
Our 5-Axis CNC Machining Process follows a structured workflow to ensure accuracy, efficiency, and repeatability. Each step is optimized to minimize errors and meet your specifications:
- Design & Programming: We convert your 3D CAD models into machine-readable code using advanced CNC Programming software. This step includes Tool Path Generation—mapping the cutting tool’s movement to avoid collisions and ensure smooth operation.
- Machine Setup: Our technicians mount the workpiece and cutting tools, calibrate axes, and perform test runs to verify alignment. Proper Machine Setup is critical for achieving tight tolerances.
- Machining Operations: The machine executes the programmed tool paths, cutting and shaping the material across all five axes. This step eliminates the need for multiple setups, reducing production time.
- Quality Control: We inspect parts using precision tools (e.g., CMMs, calipers) to ensure they meet Tolerance Standards (more on this later). Quality Control in Machining includes dimensional checks and surface finish assessments.
- Post-Processing Steps: Parts may undergo Surface Treatment (e.g., anodizing, polishing) or assembly before final delivery. Post-processing enhances durability, aesthetics, and functionality.
This Step-by-Step Machining workflow typically reduces lead times by 30–50% compared to traditional 3-axis methods, according to industry data.
Materials for 5-Axis CNC Machining
We work with a wide range of Machinable Materials to suit diverse industry needs. The right material selection directly impacts part performance, cost, and machining complexity—our team helps you choose the best option for your project.
Below is a breakdown of common Materials for 5-Axis CNC Machining and their key properties:
| Material Category | Examples | Key Properties | Ideal Applications |
| Metal Machining Materials | Aluminum, Stainless Steel, Titanium | High strength, durability, heat resistance | Aerospace, automotive, defense |
| Aluminum Machining | 6061, 7075 | Lightweight, corrosion-resistant, easy to machine | Consumer electronics, automotive parts |
| Stainless Steel Machining | 304, 316 | Rust-resistant, strong, hygienic | Medical devices, food processing equipment |
| Titanium Machining | Ti-6Al-4V | High strength-to-weight ratio, biocompatible | Aerospace components, dental implants |
| Plastic Machining | PEEK, Acetal, Nylon | Low weight, chemical resistance, low friction | Electronics enclosures, medical tools |
| Composite Materials | Carbon fiber-reinforced polymer (CFRP) | High strength, lightweight | Aerospace structures, high-performance parts |
| Exotic Metals | Inconel, Hastelloy | Extreme heat/corrosion resistance | Jet engine parts, oil/gas equipment |
Our Material Selection for Machining experts consider factors like cost, lead time, and part function to recommend the optimal material for your project.
5-Axis CNC Machining Surface Treatment Options for Machined Parts
After machining, Surface Treatment enhances a part’s durability, appearance, and performance. We offer a full suite of Machined Surface Finishes and coatings to meet your specific requirements:
| Surface Treatment | Description | Benefits |
| Anodizing | Electrochemical process that creates a protective oxide layer (common for aluminum). | Corrosion resistance, improved aesthetics, increased surface hardness. |
| Plating | Depositing a thin metal layer (e.g., chrome, nickel) onto the part. | Enhanced conductivity, wear resistance, decorative appeal. |
| Painting | Applying a protective or decorative paint coating. | UV resistance, color customization, scratch protection. |
| Polishing | Smoothing the surface to achieve a glossy or matte finish. | Improved aesthetics, reduced friction, easier cleaning. |
| Sandblasting | Using high-pressure abrasive media to create a textured surface. | Improved adhesion for coatings, uniform finish, deburring. |
| Heat Treatment | Heating/cooling metal to alter its mechanical properties (e.g., annealing, quenching). | Increased strength, ductility, or hardness. |
| Surface Hardening | Hardening the outer layer of metal (e.g., carburizing) while keeping the core soft. | Wear resistance for high-stress parts (e.g., gears). |
| Surface Coatings | Specialized coatings (e.g., PTFE, ceramic) for unique needs. | Chemical resistance, high-temperature protection. |
Choosing the right Coatings for Machined Parts ensures your components perform reliably in their intended environment.
5-Axis CNC Machining Tolerances & Quality Assurance
Machining Tolerances—the allowable deviation from a part’s specified dimensions—are critical for ensuring functionality and fit. Our 5-axis machines deliver Precision Tolerances that meet or exceed industry standards, including ISO Tolerances (e.g., ISO 8062).
Here’s how our tolerance capabilities compare to traditional machining:
| Tolerance Type | Our 5-Axis Capability | Traditional 3-Axis Capability | Key Application |
| Dimensional Accuracy | ±0.0005” (0.0127 mm) | ±0.002” (0.0508 mm) | Aerospace fasteners, optical parts |
| Tight Tolerances | ±0.001” (0.0254 mm) for complex geometries | ±0.005” (0.127 mm) for complex geometries | Medical implants, precision gears |
| Geometric Tolerances | Compliant with GD&T (ASME Y14.5) | Limited GD&T compliance for complex shapes | Automotive powertrain components |
To guarantee quality, we use rigorous Inspection Methods such as:
- Coordinate Measuring Machines (CMMs) for 3D dimensional checks
- Optical comparators for surface profile inspections
- Force torque testing for assembly-ready parts
Our Quality Assurance process ensures 99.9% of parts meet your specifications—no exceptions.
Advantages of 5-Axis CNC Machining
The Advantages of 5-Axis CNC Machining make it the preferred choice for complex, high-precision parts. Compared to traditional methods, it offers tangible benefits for productivity, cost, and quality:
| Advantage | Description | Impact |
| Increased Productivity | Single-setup machining reduces production time by 30–50%. | Faster time-to-market for your products. |
| Enhanced Precision | Simultaneous 5-axis movement eliminates setup errors, improving dimensional accuracy. | Fewer defects and reworks, lowering costs. |
| Improved Efficiency | Optimized tool paths reduce cutting time and tool wear. | Lower material waste and tool replacement costs. |
| Reduced Setup Time | No need to reposition the workpiece for complex cuts. | Higher machine utilization and shorter lead times. |
| Complex Geometry | Machines intricate shapes (e.g., undercuts, curved surfaces) that 3-axis can’t handle. | More design flexibility for innovative products. |
| Single Setup Machining | Reduces human error from multiple setups. | Consistent quality across high-volume runs. |
| Cost Savings | Faster production and fewer errors lower total manufacturing costs by 20–40%. | Higher profitability for your projects. |
| Faster Turnaround Time | Streamlined workflow delivers parts in days (not weeks) for most projects. | Better responsiveness to market demands. |
These Benefits of Multi-Axis Machining make it ideal for industries where precision and speed are non-negotiable.
5-Axis CNC Machining Applications by Industry
5-Axis CNC Machining Applications span nearly every manufacturing sector, thanks to its versatility and precision. Below are key industries we serve and their specific needs:
| Industry | Key Machining Needs | Examples of Parts |
| Aerospace Machining | Lightweight, high-strength parts with tight tolerances. | Turbine blades, aircraft brackets, engine components. |
| Automotive Machining | High-volume production of complex, durable parts. | Gearboxes, suspension components, electric vehicle (EV) parts. |
| Medical Device Machining | Biocompatible materials and ultra-precise tolerances. | Dental implants, surgical instruments, prosthetics. |
| Electronics Machining | Small, lightweight parts with intricate features. | Circuit board enclosures, connector housings. |
| Industrial Equipment Machining | Heavy-duty parts for harsh environments. | Pump housings, gear shafts, hydraulic components. |
| Tool and Die Machining | Custom molds and dies with complex cavities. | Injection molds, stamping dies. |
| Consumer Goods Machining | Aesthetically pleasing parts with consistent quality. | High-end furniture hardware, electronic device casings. |
| Defense Industry Machining | Rugged parts that meet military standards. | Weapon components, vehicle armor parts. |
Manufacturing Techniques in 5-Axis CNC Machining
Our 5-axis services leverage advanced Manufacturing Techniques to optimize performance, tool life, and part quality. These techniques are tailored to your material and design requirements:
| Technique | Description | Best For |
| Milling Techniques | High-speed milling (HSM) and trochoidal milling for fast, efficient material removal. | Aluminum, stainless steel, and composite parts. |
| Turning Techniques | Live tooling and sub-spindle turning for complex, cylindrical parts (e.g., shafts). | Automotive and industrial components. |
| Drilling Techniques | Deep-hole drilling and peck drilling to avoid chip buildup and tool breakage. | Aerospace and oil/gas parts with deep holes. |
| Cutting Tools | Specialized tools (e.g., carbide end mills, diamond-coated tools) for hard or abrasive materials. | Titanium, exotic metals, and composites. |
| Advanced Manufacturing Methods | Adaptive machining (adjusts tool paths in real time) for inconsistent material properties. | Parts made from recycled or heterogeneous materials. |
| Hybrid Machining | Combining 5-axis milling with additive manufacturing (3D printing) for complex parts. | Prototypes and low-volume production of hybrid components. |
| Additive Manufacturing Integration | Machining 3D-printed parts to achieve precise tolerances and surface finishes. | Medical implants and aerospace components. |
Why Choose Our 5-Axis CNC Machining Services?
When you partner with us, you’re not just hiring a machining service—you’re gaining a team of experts dedicated to your success. Here’s why clients choose us for their CNC Machining Services:
- Expertise in Machining: Our technicians have 10+ years of experience with 5-axis technology, ensuring mastery of even the most complex projects.
- Competitive Advantage: We invest in the latest machines (e.g., DMG MORI, Haas) to deliver faster, more precise results than competitors.
- Customer Service: Our team provides 24/7 support—from design consultation to post-delivery follow-up.
- Quality Commitment: We are ISO 9001:2015 certified, with a quality management system that ensures consistency across every project.
- On-Time Delivery: 98% of our projects meet their scheduled delivery dates, even for rush orders.
- Cost-Effective Solutions: We optimize material usage and workflow to keep costs low without compromising quality.
- Technical Support: Our engineers help refine designs for manufacturability, reducing lead times and reworks.
- Industry Experience: We serve 8+ key industries, bringing sector-specific knowledge to your project.
Client Satisfaction: 95% of our clients return for repeat projects, a testament to our reliability and results.
