You’ve just pulled a 3D print off the build plate. It has the right shape, but the surface is rough, covered in layer lines, and maybe dotted with marks from supports. For a hobbyist, this might be acceptable. But if you’re creating parts for industrial use, a medical device, or a consumer product, this raw state is just the beginning. This gap between a raw print and a finished, functional component is where 3D printing post-processing comes in.
Think of post-processing not as an optional extra, but as the essential final step that unlocks the true potential of additive manufacturing. It’s the critical bridge between a digital model and a part that meets real-world demands for strength, precision, and appearance. While printing gets the geometry right, post-processing ensures the part performs correctly. This is especially true as the industry grows; for instance, in 2023, over three-quarters of manufacturers were producing more than 10 parts at a time, with a clear shift toward end-use production, making efficient finishing more important than ever .
This guide will walk you through the complete post-processing journey—from initial cleanup to advanced strengthening techniques—helping you transform your prints from good to exceptional.
Why Bother? The Critical Role of Post-Processing in Modern 3D Printing
Post-processing is far more than just making a part look pretty. It’s a fundamental series of operations that directly impacts the usability, reliability, and value of a 3D-printed component. Skipping it can mean the difference between a part that works and one that fails.
First, surface quality directly affects function. Rough surfaces from layer lines can increase friction, trap bacteria, hinder fluid flow, or prevent a proper seal. Post-processing smooths these surfaces, which is vital for parts in aerospace (for aerodynamics), medical (for sterility), and automotive applications .
Second, it’s essential for mechanical integrity. As-printed parts, especially in metals, often contain internal stresses from rapid heating and cooling. Without proper heat treatment to relieve these stresses, parts can warp or crack under load . Processes like annealing for plastics or thermal treatments for metals reorganize the material’s internal structure, enhancing strength, durability, and dimensional stability .
Finally, it enables enhanced functionality. Through post-processing, you can make a part waterproof, electrically conductive, UV-resistant, or wear-resistant. You can also join multiple smaller prints into a larger assembly, overcoming printer size limitations .
Ignoring post-processing is a common but costly mistake. One factory reported losing $2,000 when a batch of 100 rough-looking PA6 industrial fixtures was rejected by a client for not looking “industrial” enough . This underscores that for professional and industrial applications, the job isn’t done when the printing stops.
First Things First: Essential Cleaning and Preparation
Before any smoothing or strengthening, you must properly clean and prepare your print. This foundational step sets the stage for all subsequent processes and varies significantly by printing technology.
- Support Removal: For technologies like FDM and SLA, removing supports is the first hands-on task. The goal is clean removal without damaging the part. Methods range from careful hand-breaking and clipping to using specialized tools. For complex internal supports, water-soluble materials like PVA (for PLA) or HIPS (for ABS) can be a game-changer, dissolving away in a liquid bath and leaving minimal marks . For industrial metal prints, advanced methods like electrochemical processing (e.g., Hirtisation) are being developed to remove supports from complex internal channels without mechanical force .
- Depowdering: For powder-based technologies like SLS (Selective Laser Sintering) and MJF (Multi Jet Fusion), the part emerges buried in unfused powder. Thorough depowdering is critical. This often starts with brushing and compressed air but is increasingly handled by automated depowdering stations. These systems use controlled vibration, rotation, and blasting to remove powder from even the most intricate internal geometries, ensuring no residual powder remains to affect function or surface finish .
- Washing and Curing (for Resin Prints): For SLA, DLP, and other resin-based prints, parts are coated in uncured liquid resin. They must undergo a solvent wash (often in isopropyl alcohol) in an ultrasonic or agitation wash station to remove this residue, followed by post-curing under UV light to achieve their final mechanical properties and stability .
Pro Tip: Always wear appropriate personal protective equipment (PPE) like gloves, safety glasses, and masks during these initial steps, especially when handling chemicals, fine powders, or sharp support remnants.
How to Master Surface Finishing for a Flawless Look?
Once your part is clean, the next goal is often to achieve a specific surface texture—from a uniform matte finish to a high-gloss polish. The right method depends on your material, the part’s geometry, and the desired outcome.
Mechanical Methods are the most accessible and versatile:
- Sanding and Polishing: The classic approach. Start with coarse-grit sandpaper to remove major layer lines and support marks, then progress through finer grits. For a polished shine, finish with polishing compounds and a buffing wheel. Remember: always sand in a circular or cross-hatch pattern to avoid creating deep, directional scratches, and consider wet-sanding to reduce heat and dust .
- Tumbling (Vibratory Finishing): Ideal for batch processing small, durable parts. Parts are placed in a vibrating tub with abrasive media. The constant motion gently wears down surfaces, producing a consistent, smooth satin or matte finish. It’s less suitable for parts with very fine details, which can get rounded off .
- Abrasive Blasting (Bead Blasting): Uses high-pressure air to blast media (like glass beads, plastic pellets, or sand) at the part. It’s excellent for quickly achieving a uniform, matte texture and reaching complex external geometries. It’s a standard step for SLS/MJF nylon parts after depowdering .
Chemical and Advanced Methods offer unique advantages:
- Vapor Smoothing: Primarily for plastics like ABS and ASA. The part is exposed to solvent vapor in a sealed chamber, which slightly melts the outer surface. Surface tension causes it to reflow into a smooth, glossy, and sealed finish. It’s highly effective for complex shapes but requires specialized equipment and safety precautions .
- Coating: Applying a material to the surface. This includes:
- Spray Painting/Coating: For color and basic protection. Requires primer for good adhesion on plastics .
- Dip Coating: Immersing the part in a tank of paint, resin, or rubber for a uniform, often thicker, protective layer.
- Powder Coating: Electrostatically applying dry powder then baking to create a tough, wear-resistant skin. More common for metals but possible with some high-temp plastics.

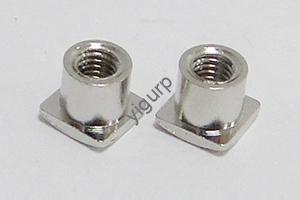

- Electroplating: A multi-step process that deposits a layer of metal (copper, nickel, chrome, etc.) onto the part. This creates a conductive, wear-resistant, and often shiny metallic surface, greatly enhancing both aesthetics and functionality .
How Can You Make Your Parts Stronger and More Functional?
Surface finish is about looks and feel, but these next processes are about core performance. They modify the part’s internal structure or add new properties.
- Heat Treatment (Annealing/Stress Relief): This is non-negotiable for most metal 3D prints (like those from SLM/DMLS). The rapid melting and solidification create high residual stresses. Heat treatment in a controlled oven relieves these stresses, preventing distortion and cracking, and can optimize the material’s microstructure for better strength, ductility, or hardness . For high-performance plastics like PEEK or even common ones like PLA, controlled annealing can also increase heat resistance and strength by allowing polymer chains to crystallize .
- Infiltration and Sealing: SLS nylon and binder jet metal/ceramic parts are naturally porous. Infiltration fills these microscopic pores with a secondary material.
- For SLS nylon, a low-viscosity epoxy or resin is wicked into the surface, dramatically improving waterproofing and chemical resistance.
- For binder jet stainless steel, molten bronze is infiltrated, boosting density and strength to near solid-metal levels .
- Joining and Assembly: Don’t let your printer’s build volume limit your designs. Post-processing includes techniques to join multiple prints into one larger, functional assembly .
- Adhesive Bonding: Using specialized plastic adhesives or superglue (cyanoacrylate) for plastics like PLA and PETG .
- Solvent Welding: Using a chemical like acetone for ABS to partially melt and fuse mating surfaces together, creating a very strong bond .
- Advanced Welding: Industrial methods like ultrasonic, friction stir, or microwave welding are being adapted for 3D-printed thermoplastics, creating robust, nearly seamless joints .
What Advanced Techniques Are Shaping the Future?
The frontier of post-processing is focused on automation, precision, and digital integration, moving from a craft to a repeatable engineering process.
- Hybrid Additive-Subtractive Manufacturing: This combines the best of both worlds. A part is 3D printed to near-net shape, then a CNC milling or grinding head mounted on the same machine or in a connected cell finishes critical features (like mating surfaces, threads, or precision holes) to tight tolerances. This is key for making functional end-use parts .
- Intelligent and Automated Systems: Research projects like Ad-Proc-Add II are developing fully automated, sensor-driven post-processing lines . Imagine a system that uses machine vision to identify support contact points, a robot to remove them, and then automatically selects and executes the correct blasting or polishing cycle based on the part’s digital twin. This ensures unprecedented consistency and cuts labor time drastically.
- Data-Driven Process Chains: The future lies in seamless digital threads. Data from the print (material, layer orientation, thermal history) automatically informs the post-processing machines, optimizing parameters for each specific part. Research is creating databases that link print settings directly to optimal finishing strategies, making expert-level results more accessible .
FAQ: Your Post-Processing Questions Answered
Here are answers to some of the most common questions about 3D printing post-processing.
- What is the most important post-processing step?
There’s no single answer, as it depends on the part’s purpose. However, proper initial cleaning and support removal is the universal first step that all other processes rely on. Doing this poorly can ruin subsequent finishing efforts. - How do I choose the right post-processing method for my material?
Always follow a material-first approach. The chemical and thermal properties of your material dictate what’s safe and effective. For example, you can vapor smooth ABS but not PLA; you must anneal PEEK at very high temperatures (~280°C) but must use low heat on PC to avoid deformation . Always consult material datasheets and test on a sample first. - Can post-processing affect the dimensional accuracy of my parts?
Yes, absolutely. Many processes, like sanding, tumbling, and infiltration, will add or remove material. Heat treatments like annealing often cause controlled but predictable shrinkage. If you require tight tolerances, you must design for post-processing—adding extra material (sacrificial stock) on critical surfaces for machining or scaling up your digital model to compensate for shrinkage . - Is automated post-processing worth the investment for a small business?
It depends on your volume and consistency needs. For low-volume, one-off prototypes, manual methods may suffice. However, if you are moving toward batch production or require industrial-grade consistency, automation becomes crucial. Automated systems reduce labor, lower variability, improve worker safety (by handling chemicals/powders), and can scale with your business, providing a strong return on investment over time .
